Nitinol alloy ring is a metal ring made of nickel-titanium alloy, it has special shape memory and super elasticity, so the nitinol ring we usually make are shape memory nitinol ring and super elastic nitinol ring. Xi'an Zhanwo Nitinol is a professional Nitinol ring manufacturer and supplier in China. We have been focusing on nitinol shape memory products for 16 years, with a professional team and high-tech technicians. Cooperating with our company can not only get high quality, but also very good price. At the same time, for the first cooperation, we can also provide free samples for your testing. If you have any needs, please contact us at any time：amybai2010@zwmet.com or WhatsApp 0086-18161909780.
1. nitinol ring Properties
1) Chemical composition: Different nitinol alloys have different nickel-titanium ratios, and shape memory nitinol rings are usually 50.9.
2) Shape memory: Nitinol shape memory rings have shape memory, that is, they are shaped into different shapes by applying and releasing stress, so that they can switch between different shapes. This feature makes it widely used in many applications such as medical and automobile manufacturing.
3) Superelasticity: The superelasticity of nitinol rings means that they have elasticity within the percentage range of their deformation, and they can return to their original shape when we use external force to deform them.
4) Strength and corrosion resistance: It has high tensile strength and elastic modulus, and also has excellent corrosion resistance.
5) Plasticity and deformation behavior: Nitinol ring for women has shape memory effect and superelastic behavior, and has good deformation behavior and stable plastic deformation.
2. Phase transition temperature of nitinol ring
|
Nitinol Alloy Ring type |
Grade |
Transformation Temperature AF |
|
Shape memory nitinol ring |
Ti-Ni-01 |
20℃~40℃ |
|
Ti-Ni-02 |
45℃~90℃ |
|
|
Superelastic nitinol alloy ring |
TiNi-SS |
-5℃~5℃ |
3. Physical properties of Nitinol shape memory ring
- Density: about 6.5 g/cm3.
- Melting point: about 1310 to 1330 degrees Celsius.
- Coefficient of thermal expansion: 12 to 20 x 10^-6/K
4. Nitinol alloy ring size
|
NO. |
Size |
Type of Nitinol Wire |
Common Wire Diameter |
|
1 |
16.6 mm |
1.Nitinol Round Wire 2.Nitinol flat wire |
1. Round wire: 0.5mm,0.6mm,0.8mm e.t.c 2. Flat wire: 0.3x1.2mm, 0.7x1.3mm, 0.4 x0.8mm, 0.6x4mm e.t.c 3. We can be in according to your size to custom. |
|
2 |
17.35 mm |
||
|
3 |
18.51 mm |
||
|
4 |
19.46 mm |
||
|
5 |
20.42 mm |
5. features of nitinol Alloy ring
1)Bendability: The Nitinol ring can be bent without permanent deformation.
2)Shape Adjustability: The shape of the shape memory nitinol ring can be adjusted by applying and releasing stress.
3)Reduced deformation: The superelastic Nitinol ring alloy can be stressed to maintain its shape, thus reducing the risk of deformation.

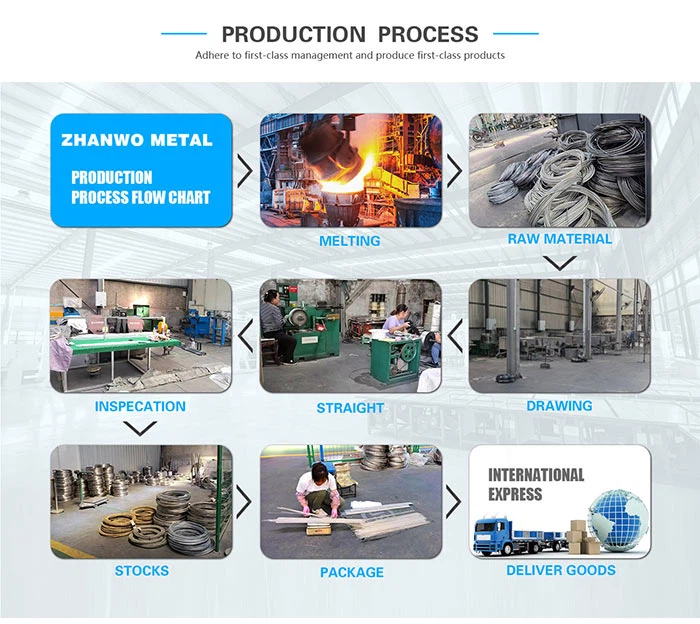

6. Processing methods and processes
Common methods of manufacturing nitinol rings are using techniques such as laser cutting, welding and compression molding. The specific process includes:
1)We need to select the appropriate nitinol wire according to customer requirements.
2) We use CAD software to design drawings according to the nitinol ring size required by the customer.
3)We make molds according to the nitinol alloy drawings.
4)We start producing shape memory nitinol rings.
6)Heat treatment processing to shape the superelastic nitinol ring.
7)Clean the surface of the nickel-titanium ring.

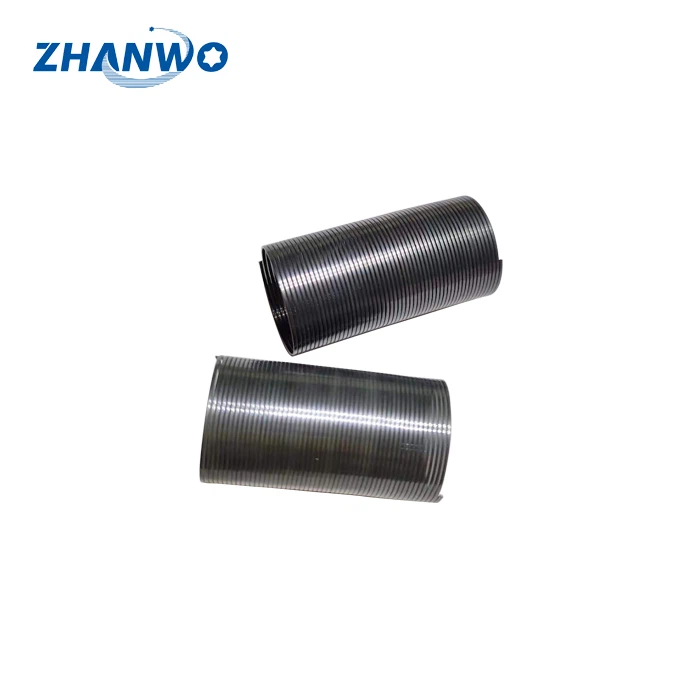

7. Nitinol ring Display
8. Application fields of nickel titanium ring
1) Jewelry: Nitinol alloy ring is used to make high-end nitinol rings.
2) Aerospace: It can be used to make aerospace parts, such as sensors, valves, air conditioning controllers, and rocket engines.
3) Automotive industry: Shape memory nitinol ring can be used to make automotive parts, such as valves and shape memory springs in hydraulic systems.
4) Sporting goods: Superelastic nitinol ring can be used to make curved parts for skis and snowboards, as well as shoelaces and buckles for high-end sports shoes.
5) Medical: Widely used in the medical field. They can be used to make stents, such as heart stents, or to support and strengthen blood vessels and bone tissue.
fAQ of shape memory nitinol ring
Q1:What is the transition temperature of nitinol ring?
A1: The transition temperature of super elastic nitinol ring is 0℃ -15℃,the Shape memory nitinol ring is 50℃ - 60℃.
Q2: Are these nitinol rings suitable for implantable medical devices and jewelry?
A2: Yes, they are suitable for use in implantable medical devices.
Q3: Can you customize NiTi rings according to customer's size ?
A3: Yes, we supply customization services to meet specific design requirements and ODM or OEM service.
Q4: What certifications do your nitinol products have?
A4: The raw materials of our shape memory nitinol rings meet the international standard ASTM F2063 and have passed IS09001and ISO7380.
