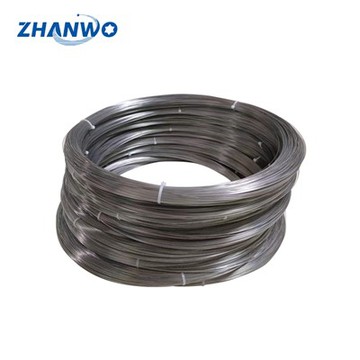

Shape memory nitinol wire is an alloy wire with a shape memory function. The main components of the material are nickel and titanium. The material has a memory effect and can be activated by a change in temperature to change shape. When a shape memory alloy is at a high temperature, it becomes soft and pliable and can be rebent into a new shape; when it is cooled to room temperature, it returns to its original shape. The material is used in both medical and mechanical applications, in devices such as brackets and clamps, and can also be used in thermally stressed fasteners.
The so-called nitinol shape memory alloy refers to a binary alloy composed of nickel and titanium. Due to the change in temperature and mechanical pressure, there are two different crystal structure phases, namely the austenite phase and the martensite phase. The phase transformation sequence of nitinol wire during cooling is the parent phase (austenite phase)-R phase-martensite phase. The R phase is a rhombus, and the austenite is the state when the temperature is higher (greater than the starting temperature of austenite), or when the load is removed (external force is removed), it is cubic and hard. The shape is relatively stable. The martensite phase is a state when the temperature is relatively low (less than the end temperature of martensite) or loaded (activated by an external force), hexagonal, ductile, repeatable, less stable, and easier to deform. The temperature of shape memory nitinol wire includes room-temperature wire, High-temperature wire, and low-temperature wire. Usually used in medical treatment, fishing, jewelry, paragliding, glasses, engines, etc.
AF Temperature of Shape Memory Nitinol Wire
|
Name |
Grade |
Transformation Temperature AF |
Standard |
|
Shape Memory Nitinol Alloy Wire |
Ti-Ni-01 |
20 °C~ 40 °C |
ASTM F2063 |
|
Ti-Ni-02 |
45 °C~ 90 °C |
||
|
Medical Shape Memory Nitinol Wire |
TiNi-SS |
33 ± 3 °C |
|
|
Nitinol Standard ASTM F2063 |
|||
Manufacture Processes of shape memory nitinol wire
1) Ingredients: We mix sponge titanium and electrolytic nickel in appropriate proportions.
2) Melting: Put the prepared nitinol raw materials into the melting furnace to melt into nickel-titanium ingot.
3) Forging: Heat the molten cylindrical shape memory alloy to a high temperature, and then form it into the required shape through mechanical force, such as wire rods, rods, tube billets, etc.
4) Wire drawing: Put the formed nickel-titanium alloy billet into the wire drawing machine to draw the required shape memory NiTi Wire.
5) Heat treatment: Heat the formed memory nickel-titanium alloy wire to a specific temperature and keep it at this temperature for a period of time to make it enter a suitable memory shape state.
6) Surface treatment: Surface treatment is performed on the drawn memory nickel-titanium alloy wire to make its surface smooth and improve corrosion resistance.
The above is the production process of shape memory nitinol awire. After the production is completed, these nitinol wires can be applied in different fields.
Package & Shipment of shape memory nitinol wire
1.) pacakge of shape memory nitinol wire
- Packing with moisture-proof paper.
- Packing with Carton.
- Packing with foam plastics in all sides of the carton.
- Packing big quantities of products in wooden cases.
2.) Shipping of shape memory nitinol wire
Various Modes of Transportation for You :
- Air transportation
- Sea transportation
- By express mail: DHL, FedEx, EMS, UPS, SF-Express, etc.
FAQ Of Shape memory Nitinol Wire
Q1:Are you a factory or trading company?
A1:We are a factory. We manufactured nitinol products for 16years.
Q2:Do you supply free samples of shape memory nitinol wire?
A2: Yes, if we have some nitinol stocks that we will supply the free sample.
Q3: What's transition temperature range you can do?
A3: AF= (-20Degree ℃) -90 Degree ℃.
Q4: Do you have the MOQ limit?
A4: It's up to the product you need. The stock products have no MOQ, If we have no stocks that the MOQ is 1kg.
Q5: What is the information you need to provide?
A5: The product sizes, Quantity, surface,transition temperature, application and your special requirements if any.
Q6: Could you custom medical nitinol wire according to the material composition of the customer?
A6： Yes, We can be in according to the customer's nickel and titanium composition ratio to customize shape memory nitinol wire.
Q7: What types of your nitinol wire are there?
A7: There are superelastic nitinol wire and shape memory nitinol wire.
Q8: What colors can the surface of your nitinol wire be made of?
A8: The colors have rose gold, purple, blue, amber, black and gray.
